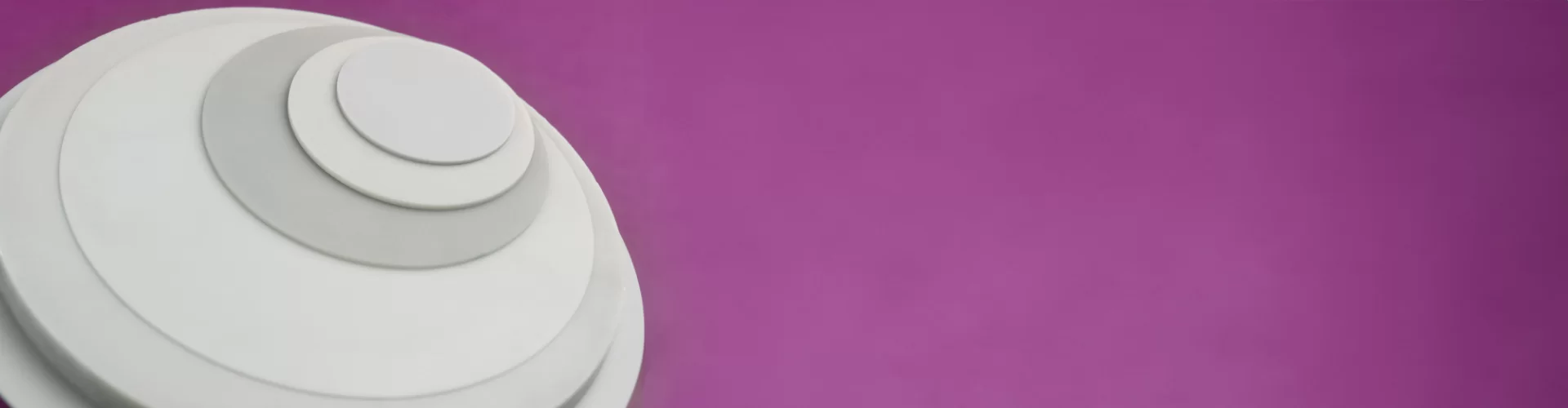

Aluminum Nitride

Polished ceramic, quartz, high dielectric, sapphire, glass, fused silica, AlN and numerous other hard materials can be shipped from stock. Aluminum Nitride (AlN) features a high thermal conductivity of 170 W/mK, excellent dielectric properties, and a low thermal expansion similar to silicon. These characteristics make AlN ideal for electrically insulating nontoxic substrate material for hybrid, power and microwave electronics applications. Some items may have notch or flat.

Aluminum Nitride Ceramic

Aluminum Nitride Ceramic is the perfect material choice when high thermal conductivity and electrical insulation properties are needed. Aluminum Nitride has a combination of high dielectric strengthening, high electrical insulation properties, and low thermal expansion.  AlN Aluminum Nitride is optimal for hybrid, power and microwave electronics applications where an electrically insulating nontoxic substrate material is required.  It is the ideal material for a wide variety of uses in the growing Semiconductor, Aerospace, Defense and Medical Industries.

Aluminum Nitride Advantages

The difference between Aluminum Nitride Ceramic material and other electrically insulative and sometimes thermally insulative is its unique ability to dissipate heat quickly while maintaining maximum efficiency. Aluminum Nitride’s thermal profile is similar to Silicon, making it a popular choice for semiconductor wafer processing applications.

Valley Design’s Aluminum Nitride products manage rapid heat buildup and offer the unique ability to dissipate heat in components such as heat sink spreaders and a wide variety of other electronic applications where high temperatures are often an issue. Aluminum Nitride substrates are perfect for power modules and LED applications.

Aluminum Nitirde (AlN) Key Thermal Properties

• • High Thermal Conductivity
  • Low Thermal Expansion
  • High Thermal Stability

• Low Coefficient of Thermal Expansion
• High Thermal Shock Resistance

Other Desirable Properties Of AlN

• Good Dielectric properties
• Good Chemical Resistance
• Good Metallization Properties
• Good Alternative material to Beryllium Oxide BeO (Hazardous material)
• Good Plasma Resistance

Aluminum Nitride Mechanical, Thermal, Electrical Properties

*All properties are room temperature values except as noted.

This data is representative of typical values of commercially available material and is for comparative purposes only. The values given are not to be interpreted as absolute properties of the material, nor will Valley assume any legal liability or warranty.  The user shall determine the suitability of the material for its intended use and assumes all risk and liability.

Aluminum Nitride Products & Applications

• Circuit Boards
• Double Sided Cooling
• LED Applications / LED Ceramics
• Heatsinks
• Semiconductor Heaters
• Microwave Device Packages
• Optoelectronic Laser Substrate
• IC Packaging
• Chamber Fixture and Insulators
• Sintering Trays
• Sputtering Targets
• Setter Plates
• Power Transistor Bases
• Chamber Rings
• Circuit Carrier Substrates
• Lasering Components
• Rectifiers
• Metallized AlN Substrates
• Aluminum Nitride Ceramic Substrates
• Thermal Management

Aluminum Nitride CNC Machining

Valley Design wants to be your Aluminum Nitride Supplier and Manufacturer.

We are Aluminum Nitride CNC Machining Specialists, with almost 50 years of experience Lapping, Polishing, Dicing, and Grinding and Machining Aluminum Nitride Ceramics.

We machine Aluminum Nitride Ceramic parts in the form of Ground, Lapped and Polished surface finishes:

• Substrates
• Plates
• Wafers
• Blocks
• Shims
• Chucks
• Spacers
• Complex Shapes
• Rings

We also stock a large inventory of AlN material.  We have aluminum nitride blanks which may be lapped, polished, diced or CNC machined.  We also have 1,000’s of finished substrates of various sizes and thicknesses in stock.

Contact us for all your aluminum nitride ceramics needs.

Please call or e-mail for details (pricing and availability may be subject to change)
